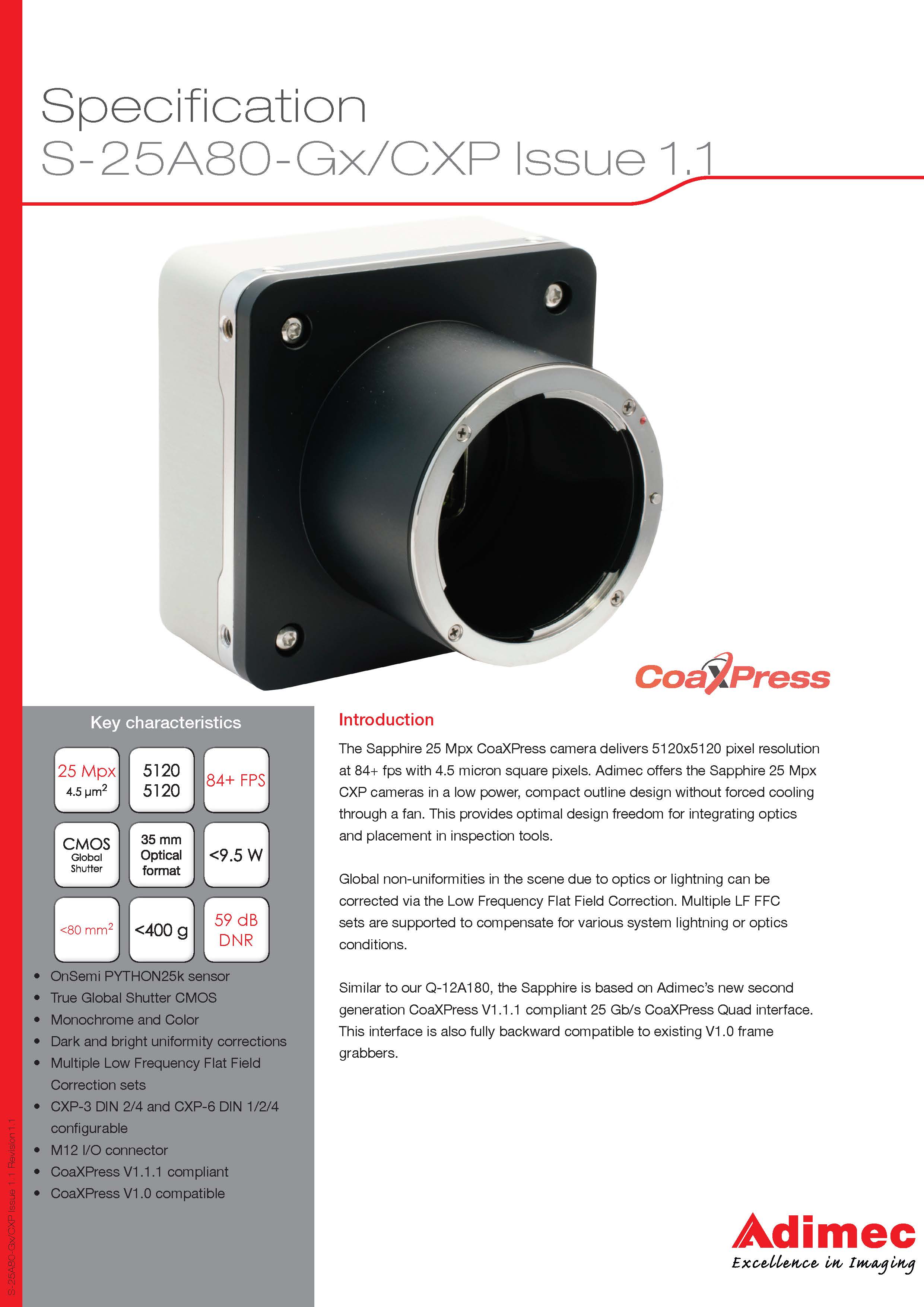

The Sapphire 25 Mpx CoaXPress camera delivers 5120x5120 pixel resolution at 84+ fps with 4.5 micron square pixels. Adimec offers the Sapphire 25 Mpx CXP cameras in a low power, compact outline design without forced cooling through a fan. This provides optimal design freedom for integrating optics and placement in inspection tools.
Global non-uniformities in the scene due to optics or lightning can be corrected via the Low Frequency Flat Field Correction. Multiple LF FFC sets are supported to compensate for various system lightning or optics conditions.
Similar to our Q-12A180, the Sapphire is based on Adimec’s new second generation CoaXPress V1.1.1 compliant 25 Gb/s CoaXPress Quad interface.
This interface is also fully backward compatible to existing V1.0 frame
grabbers.
