Adimec S-65A35-Kx/CXP 6500万相机

Euresys-比利时数字图像采集卡

上海和谦图像技术有限公司
地址：上海市浦东新区锦绣东路2777弄35号楼301-303室
邮编：201206
电话：021-50766071 50766072
传真：021-50766071-802
商务：sales # hqvision.cn
技术：support # hqvision.cn

• 65 Megapixel at 35 fps
• Monochrome and Color
• Dark field DSNU uniformity correction
• Bright field column and low frequency
uniformity correction

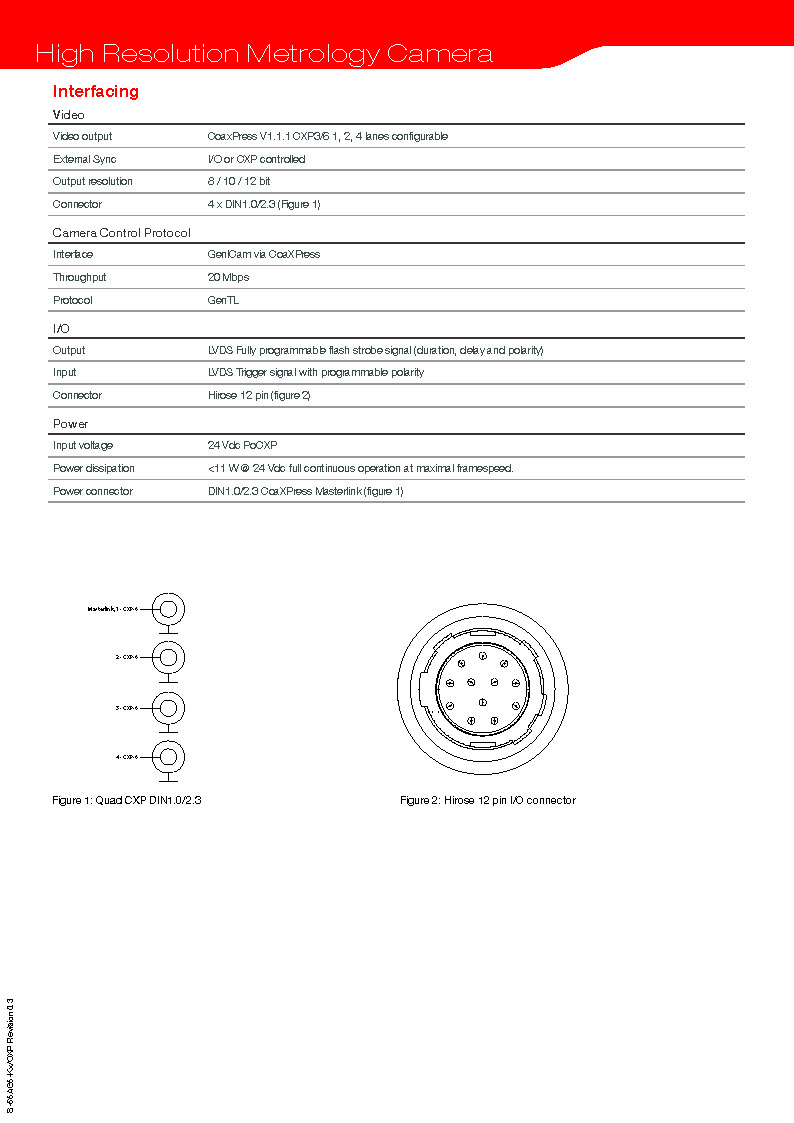

• Configurable quad CXP6 speed
• Hirose 12pin I/O connector
• Adimec Connect & Grab™
• CoaXPress V1.1.1 compliant

产品介绍

相关下载

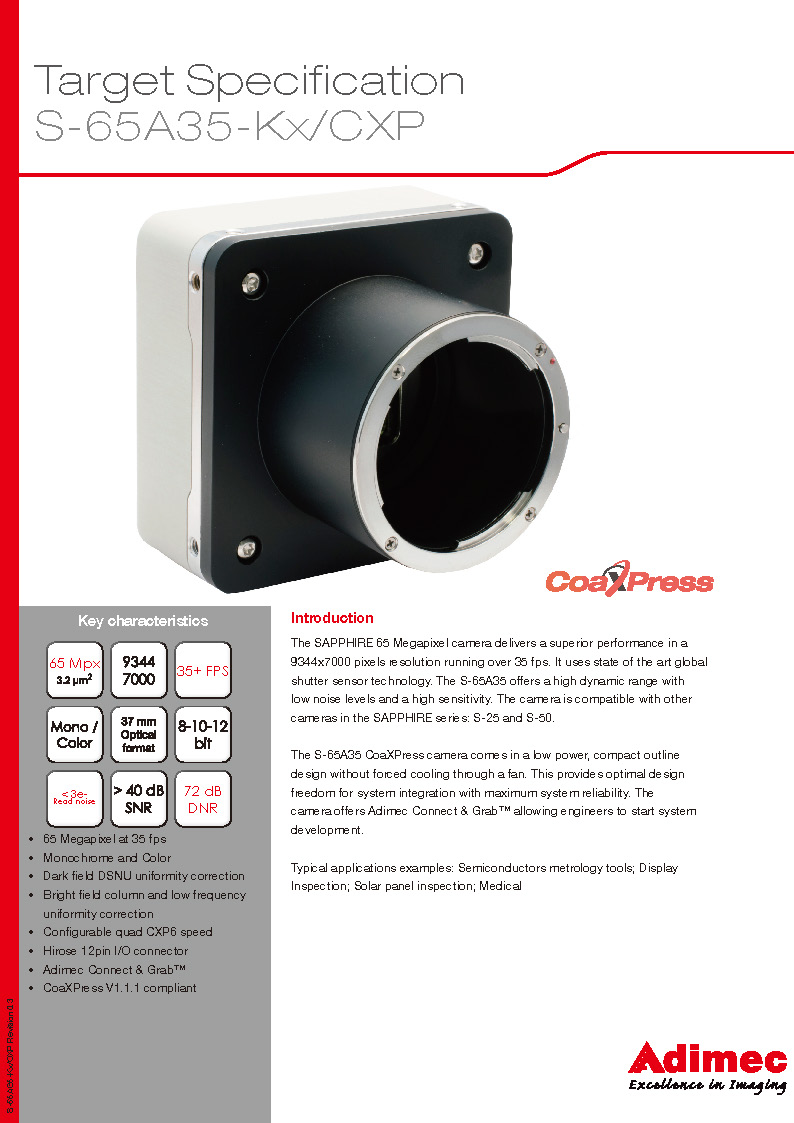

The SAPPHIRE 65 Megapixel camera delivers a superior performance in a
9344x7000 pixels resolution running over 35 fps. It uses state of the art global
shutter sensor technology. The S-65A35 offers a high dynamic range with
low noise levels and a high sensitivity. The camera is compatible with other
cameras in the SAPPHIRE series: S-25 and S-50.
The S-65A35 CoaXPress camera comes in a low power, compact outline
design without forced cooling through a fan. This provides optimal design
freedom for system integration with maximum system reliability. The
camera offers Adimec Connect & Grab™ allowing engineers to start system
development.
Typical applications examples: Semiconductors metrology tools; Display
Inspection; Solar panel inspection; Medical
