Adimec D-65A09-Kx/CXP-6 6500万cxp黑色工业相机
| 型号 | D-65A09-Kx/CXP-6 | 品牌 | Adimec |
| 类别 | 面阵相机 | 传感器厂商 | 其他 |
| 分辨率 | 40-100MP | 传感器类型 | 其他 |
| 帧率/行频 | 0-10fps | 镜头接口 | 其他 |
| 输出接口 | CoaXPress | 像元尺寸 | 3.2μm |
| 快门方式 | 全局快门 | 颜色 | 其他 |
| 产品动态 | 已发布 |

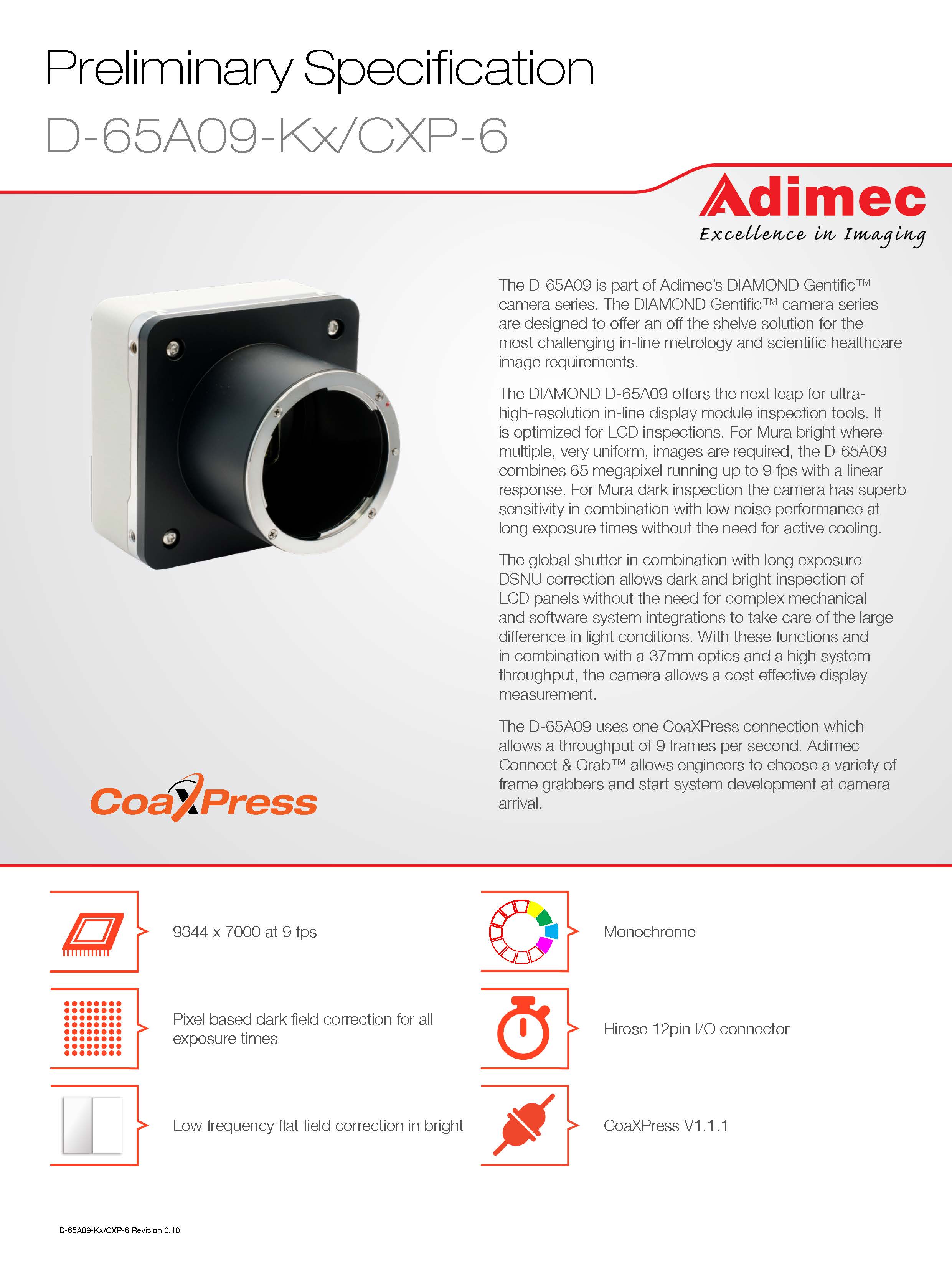

The D-65A09 is part of Adimec’s DIAMOND Gentific™ camera series. The DIAMOND Gentific™ camera series are designed to offer an off the shelve solution for the most challenging in-line metrology and scientific healthcare image requirements.
The DIAMOND D-65A09 offers the next leap for ultra-high-resolution in-line display module inspection tools. It is optimized for LCD inspections. For Mura bright where multiple, very uniform, images are required, the D-65A09 combines 65 megapixel running up to 9 fps with a linear response. For Mura dark inspection the camera has superb sensitivity in combination with low noise performance at long exposure times without the need for active cooling.
The global shutter in combination with long exposure DSNU correction allows dark and bright inspection of LCD panels without the need for complex mechanical and software system integrations to take care of the large difference in light conditions. With these functions and
in combination with a 37mm optics and a high system throughput, the camera allows a cost effective display measurement.
The D-65A09 uses one CoaXPress connection which allows a throughput of 9 frames per second. Adimec Connect & Grab™ allows engineers to choose a variety of frame grabbers and start system development at camera arrival.
The DIAMOND D-65A09 offers the next leap for ultra-high-resolution in-line display module inspection tools. It is optimized for LCD inspections. For Mura bright where multiple, very uniform, images are required, the D-65A09 combines 65 megapixel running up to 9 fps with a linear response. For Mura dark inspection the camera has superb sensitivity in combination with low noise performance at long exposure times without the need for active cooling.
The global shutter in combination with long exposure DSNU correction allows dark and bright inspection of LCD panels without the need for complex mechanical and software system integrations to take care of the large difference in light conditions. With these functions and
in combination with a 37mm optics and a high system throughput, the camera allows a cost effective display measurement.
The D-65A09 uses one CoaXPress connection which allows a throughput of 9 frames per second. Adimec Connect & Grab™ allows engineers to choose a variety of frame grabbers and start system development at camera arrival.
