Product Specifications Q-12A65-Fx/CL 1200万
| 型号 | Q-12A65-Fx/CL | 品牌 | Adimec |
| 类别 | 面阵相机 | 传感器厂商 | 其他 |
| 分辨率 | 10-20MP | 传感器类型 | 其他 |
| 帧率/行频 | 61-100fps | 镜头接口 | 其他 |
| 输出接口 | Camera Link | 像元尺寸 | 5.5μm |
| 快门方式 | 全局快门 | 颜色 | 其他 |
| 产品动态 | 其他 |

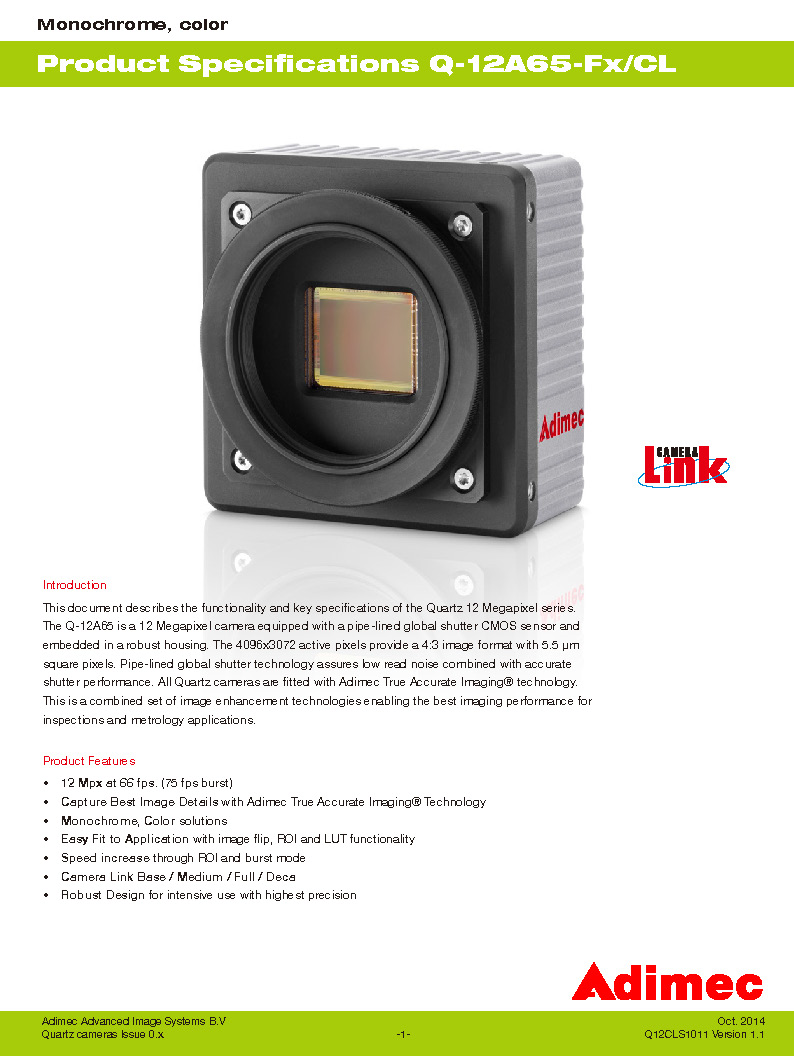

This document describes the functionality and key specifications of the Quartz 12 Megapixel series. The Q-12A65 is a 12 Megapixel camera equipped with a pipe-lined global shutter CMOS sensor and embedded in a robust housing. The 4096x3072 active pixels provide a 4:3 image format with 5.5 μm square pixels. Pipe-lined global shutter technology assures low read noise combined with accurate shutter performance. All Quartz cameras are fitted with Adimec True Accurate Imaging® technology. This is a combined set of image enhancement technologies enabling the best imaging performance for inspections and metrology applications.
